PANELUX™ Walnut Acoustic Slat Wall Panel (9' Height)
149 in stock

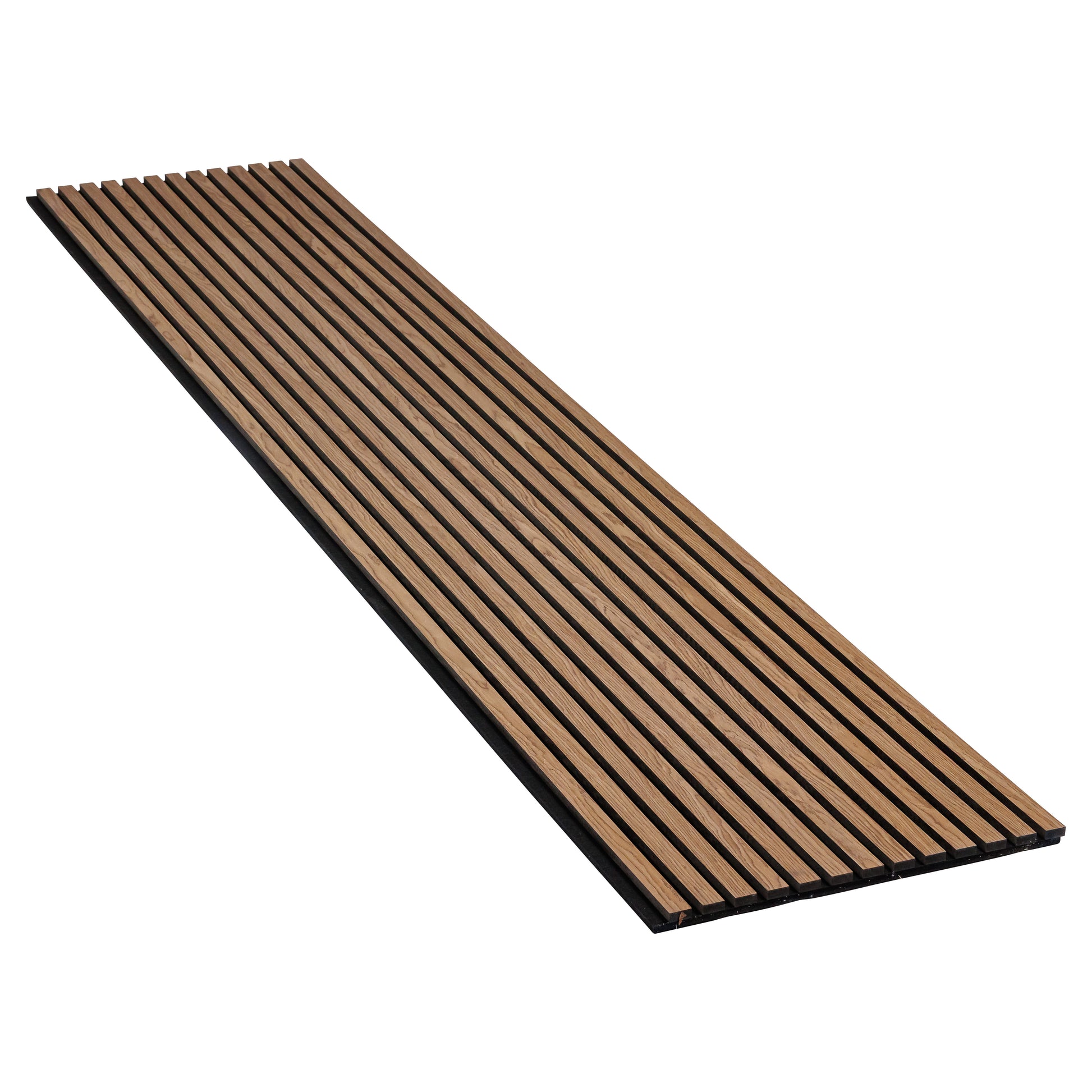

PANELUX™ slat is an interior acoustic wood slat panel designed to reduce reflected sound and reverberation while adding the warmth and texture of a real wood veneer finish. Each panel measures 20.5" wide × 106.3" high × 0.86" thick (520 × 2700 × 22 mm) and covers approximately 15.13 sq. ft. Each panel combines MDF slats finished with real wood veneer with 9 mm recycled PET acoustic felt.
PANELUX™ slat has been independently tested for sound absorption and surface-burning performance and can be installed on suitable interior walls or ceilings using the appropriate PANELUX™ installation method.
Key Features
- Real Wood Veneer Finish: Real wood veneer over MDF slats provides natural wood character and architectural texture.
- Acoustic Performance: NRC 0.50 when mounted directly against a solid surface using the tested Mount A configuration. Higher tested NRC results are available with specific furring and insulation assemblies.
- 9 mm Recycled PET Acoustic Felt: The felt backing contributes to sound absorption and helps reduce reflected sound and reverberation within the room.

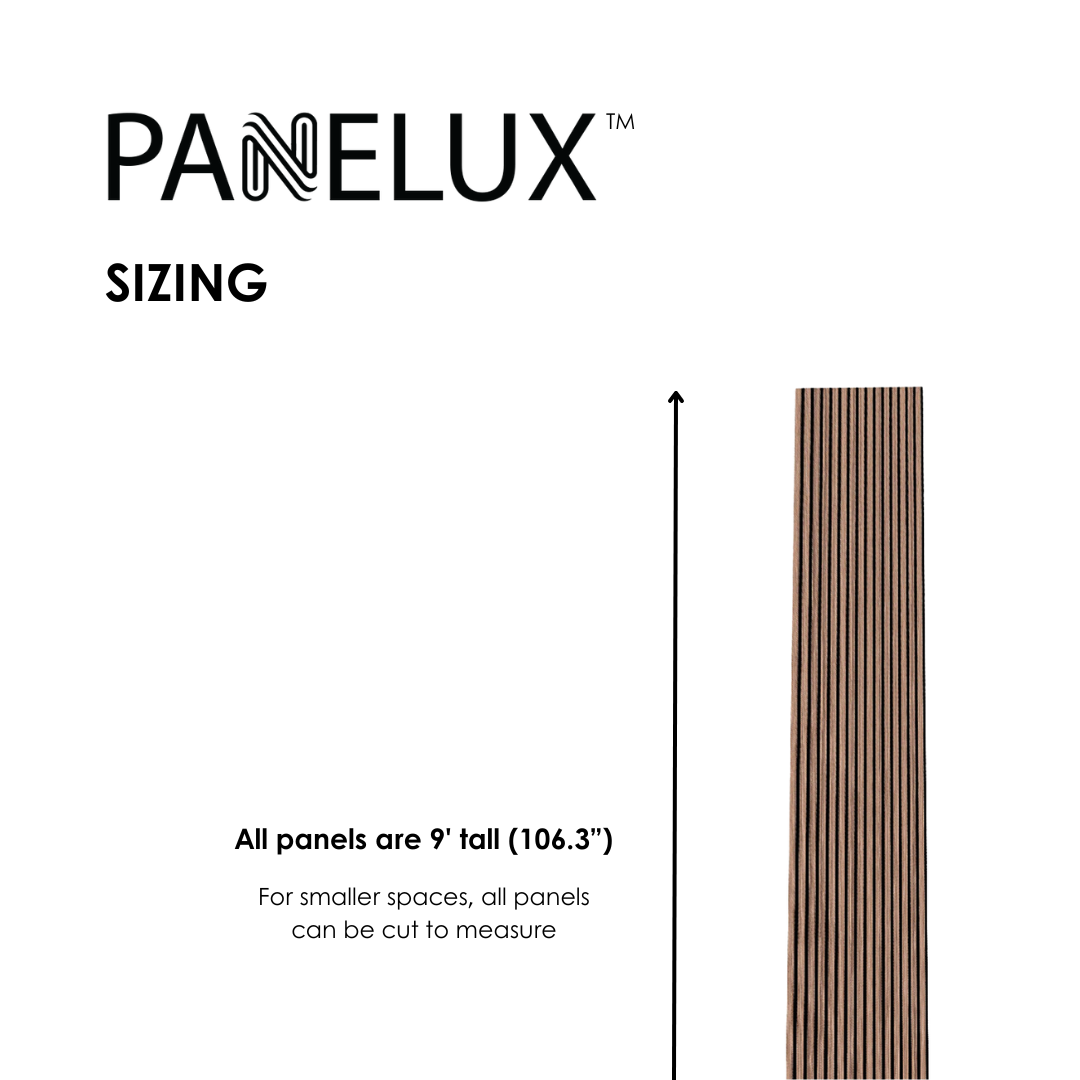

- 9-Foot Panel Height: Each panel measures 106.3" high, allowing many walls to be covered floor-to-ceiling with fewer horizontal joints.
- Panel Size and Coverage: 20.5" W × 106.3" H × 0.86" D, covering approximately 15.13 sq. ft. per panel.
- Independent Fire Testing: Tested by Intertek in accordance with CAN/ULC-S102.2-18. Flame Spread 60 / Smoke Developed 220.
- Wall or Ceiling Installation: Suitable for approved interior wall and ceiling applications when installed in accordance with the applicable PANELUX™ installation guide.
- Canadian-Owned: PANELUX™ is a Canadian-owned supplier based in Calgary, Alberta.
For Businesses/Industry Orders:
- Acoustic Test Data: Mount A NRC 0.50 / SAA 0.52; Mount D20 NRC 0.65 / SAA 0.66; Mount C50 NRC 1.00 / SAA 0.98.
- Fire Test Data: Independently tested by Intertek to CAN/ULC-S102.2-18 with Flame Spread 60 and Smoke Developed 220.
- Technical Support: Specification sheets, installation guides and technical documents are available for architects, designers, builders and contractors.
- Trade / Builder / Designer Pricing: Project and trade pricing is available for qualifying orders.
- Stocked Orders: Stocked Slat orders typically ship from Calgary within 2 business days.
- Walls Over 9 Feet: Felt-Only Transition Strips can be used to create an intentional architectural break between panel sections.
- Ceiling Applications: PANELUX™ Slat can be installed on suitable ceilings using the PANELUX™ ceiling installation method.
PANELUX™ slat is a sound-absorbing treatment for improving room acoustics. It is not a soundproofing or sound-isolation system.
Preview What PANELUX™ Sounds Like In Your Space
Before Adding PANELUX™:
After Adding PANELUX™:
Couldn't load pickup availability
Recommended Applications
Recommended Applications
Residential
- Living rooms and media rooms
- TV feature walls
- Home offices
- Bedrooms and headboards
- Hallways and entryways
- Home theatres
- Basement living spaces
- Ceilings
Commercial
- Offices and boardrooms
- Meeting rooms and shared workspaces
- Reception areas
- Restaurants and hospitality spaces
- Retail interiors
- Hotel interiors
- Wellness studios and clinics
- Open-concept spaces where reverberation control is important
- Architectural ceiling treatments
Architectural / Design
- Feature walls
- Mixed-material wall treatments
- Vertical applications that emphasize ceiling height
- Wall and ceiling installations where both finish and reverberation control are important
Product Specifications
Product Specifications
- Panel Dimensions: 20.5" W × 106.3" H × 0.86" D
- Metric Dimensions: 520 × 2700 × 22 mm
- Coverage: Approximately 15.13 sq. ft. / 1.40 m² per panel
- Slat Construction: MDF slats finished with real wood veneer
- Acoustic Backing: 9 mm recycled PET felt
- Slat Size: 1-1/16" × 1/2" / 27 × 12.7 mm
- Slat Spacing: 1/2" / 12.7 mm
- Mount A Acoustic Performance: NRC 0.50 / SAA 0.52
- Mount D20 Acoustic Performance: NRC 0.65 / SAA 0.66
- Mount C50 Acoustic Performance: NRC 1.00 / SAA 0.98
- Acoustic Test Standard: ASTM C423-22 with mounting in accordance with ASTM E795-23
- Fire Performance: CAN/ULC-S102.2-18, Flame Spread 60 / Smoke Developed 220, independently tested by Intertek
- Installation: Interior walls or ceilings using the appropriate PANELUX™ installation method
- Important: Acoustic performance depends on the complete installation assembly. The NRC 1.00 result applies to the tested Mount C50 assembly with furring and R-13 fibreglass insulation.
- PANELUX™ slat improves sound absorption and reverberation control within a room. It is not designed to stop sound transmission between rooms.
Shipping Information
Shipping Information
Minimum order is 2 panels. Orders of 2 or 3 panels ship for a flat $150 freight charge. Orders of 4 or more panels qualify for free freight shipping within PANELUX™'s standard Canadian service area.
Orders to remote or less populous locations outside our standard service area in Canada may be subject to additional shipping charges.
Stocked orders typically ship from Calgary within 2 business days. Freight deliveries may require an appointment, and customer unloading may be required depending on the delivery location and shipment configuration.
Return Policy
Return Policy
Eligible unused and uninstalled products may be returned when a return request is made within 14 days of delivery. Products must be unaltered, in resalable condition and returned with the original packaging and protective materials.
Customers are responsible for return transportation and return shipping costs. Original shipping charges are non-refundable. A 10% to 15% restocking fee may apply.
For complete warranty and return terms, visit PANELUX™ Warranty & Returns
In-Store Pickup
In-Store Pickup
Calgary-area customers can select in-store pickup at checkout.
PANELUX™ showroom and pickup location: 5730 Burbank Crescent SE, Calgary, Alberta. Questions? Call 403-754-4332.
Technical Documents
Technical Documents
For specification, installation and project planning, view PANELUX™ Slat technical documents, including installation guides, ceiling installation guidance, specification sheets and CAD resources.
Visit: PANELUX™ Technical Documents
FAQ's
FAQ's
Does PANELUX™ Slat reduce echo?
Yes. PANELUX™ Slat is designed to absorb reflected sound and reduce reverberation within a room. In the tested Mount A configuration, the panel achieved an NRC rating of 0.50.
Is PANELUX™ Slat soundproof?
No. PANELUX™ Slat is a sound-absorbing interior treatment. It improves room acoustics but is not designed to stop sound transmission between rooms.
How large is a PANELUX™ Slat panel?
Each panel measures 20.5" wide × 106.3" high × 0.86" thick and covers approximately 15.13 sq. ft.
Can PANELUX™ Slat be installed on ceilings?
Yes. PANELUX™ Slat can be installed on suitable interior ceilings using the PANELUX™ ceiling installation method. The ceiling must have a flat, structurally suitable substrate or properly constructed support structure.
What do I do if my wall is taller than 9 feet?
PANELUX™ recommends creating an intentional transition rather than simply butting panels end-to-end. A Felt-Only Transition Strip can be installed horizontally between panel sections to create this architectural break.
Can PANELUX™ Slat panels be cut?
Yes. Panels can be cut on site with appropriate woodworking tools. The PET felt backing can also be cut with a utility knife. Refer to the installation guide for detailed instructions.
What is PANELUX™ Slat made from?
Standard PANELUX™ Slat panels combine MDF slats finished with real wood veneer and a 9 mm recycled PET acoustic felt backing.
